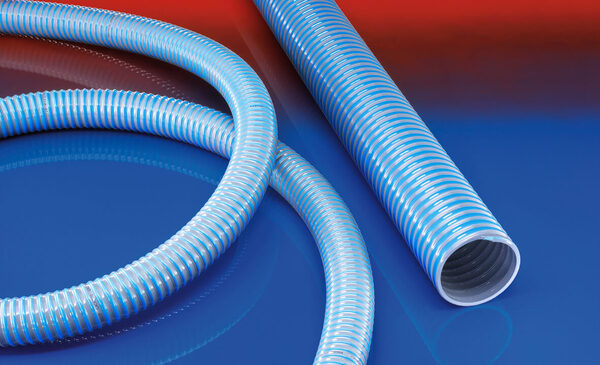

NORPLAST® PVC 389 SUPERELASTICO
Extremely flexible thermoplastic suction and discharge hose
Product details
Applications
- for the transport of (industrial) water, dung and irrigation systems under medium working conditions
- Bestseller in agriculture
Properties
- Due to the use of high quality thermoplastic more flexible under cold circumstances
- According to the norm EN ISO 1307:2008
- Vacuum up to 0.9 bar
Temperature Range
- -25°C to 60°C
Design
- PVC inner layer
- PVC outer layer
- Corrugated construction cover
- Rigid PVC spiral
- smooth interior
Delivery variants
- grey inner tube, grey exterior wall, blue spiral (standard)
Article variants
I.D.
(in / mm)
(in / mm)
outer Ø
(mm)
(mm)
Vacuum
(bar)
(bar)
Operating pressure
(20°C)
(bar)
(20°C)
(bar)
Bending
Radius
(mm)
Radius
(mm)
Weight
(kg/m)
(kg/m)
Dimensions
in Stock
(m)
in Stock
(m)
Order No.
Further Article Details
I.D. (in / mm)
1 / 25
outer Ø (mm)
33.00
Vacuum (bar)
0,900
Operating pressure (20°C) (bar)
7,000
Bending Radius (mm)
90.00
Weight (kg/m)
0.40
Dimensions in Stock (m)
50
Further Article Details
I.D. (in / mm)
1,25 / 32
outer Ø (mm)
41.00
Vacuum (bar)
0,900
Operating pressure (20°C) (bar)
6,000
Bending Radius (mm)
112.00
Weight (kg/m)
0.54
Dimensions in Stock (m)
50
Further Article Details
I.D. (in / mm)
1,5 / 38
outer Ø (mm)
47.00
Vacuum (bar)
0,900
Operating pressure (20°C) (bar)
6,000
Bending Radius (mm)
133.00
Weight (kg/m)
0.65
Dimensions in Stock (m)
50
Further Article Details
I.D. (in / mm)
2 / 50-51
outer Ø (mm)
62.00
Vacuum (bar)
0,900
Operating pressure (20°C) (bar)
5,000
Bending Radius (mm)
180.00
Weight (kg/m)
1.05
Dimensions in Stock (m)
50
Further Article Details
I.D. (in / mm)
2,5 / 63-65
outer Ø (mm)
74.00
Vacuum (bar)
0,900
Operating pressure (20°C) (bar)
4,500
Bending Radius (mm)
225.00
Weight (kg/m)
1.30
Dimensions in Stock (m)
50
Further Article Details
I.D. (in / mm)
3 / 75-76
outer Ø (mm)
88.00
Vacuum (bar)
0,900
Operating pressure (20°C) (bar)
4,000
Bending Radius (mm)
266.00
Weight (kg/m)
1.60
Dimensions in Stock (m)
50
Further Article Details
I.D. (in / mm)
3,5 / 89-90
outer Ø (mm)
103.00
Vacuum (bar)
0,900
Operating pressure (20°C) (bar)
3,500
Bending Radius (mm)
315.00
Weight (kg/m)
1.85
Dimensions in Stock (m)
50
Further Article Details
I.D. (in / mm)
4 / 100-102
outer Ø (mm)
115.00
Vacuum (bar)
0,900
Operating pressure (20°C) (bar)
3,000
Bending Radius (mm)
357.00
Weight (kg/m)
2.20
Dimensions in Stock (m)
50
Further Article Details
I.D. (in / mm)
- / 110
outer Ø (mm)
124.00
Vacuum (bar)
0,900
Operating pressure (20°C) (bar)
3,000
Bending Radius (mm)
385.00
Weight (kg/m)
2.40
Dimensions in Stock (m)
20
Further Article Details
I.D. (in / mm)
5 / 125-127
outer Ø (mm)
143.00
Vacuum (bar)
0,900
Operating pressure (20°C) (bar)
2,500
Bending Radius (mm)
450.00
Weight (kg/m)
3.10
Dimensions in Stock (m)
20
Further Article Details
I.D. (in / mm)
6 / 150-152
outer Ø (mm)
170.00
Vacuum (bar)
0,900
Operating pressure (20°C) (bar)
2,000
Bending Radius (mm)
532.00
Weight (kg/m)
4.20
Dimensions in Stock (m)
4 5 6 20
Further Article Details
I.D. (in / mm)
8 / 200-203
outer Ø (mm)
228.00
Vacuum (bar)
0,900
Operating pressure (20°C) (bar)
1,500
Bending Radius (mm)
715.00
Weight (kg/m)
9.50
Dimensions in Stock (m)
4 5 6
Overpressure and underpressure are recommended threshold operating values, products can be subjected to higher loads upon request. The bending radius is measured through the inside of the hose arch. The right to make technical modifications is reserved. All values determined at 20°C and are approx. data. Additional information at www.norres.com/en/technology/.
