GM 164

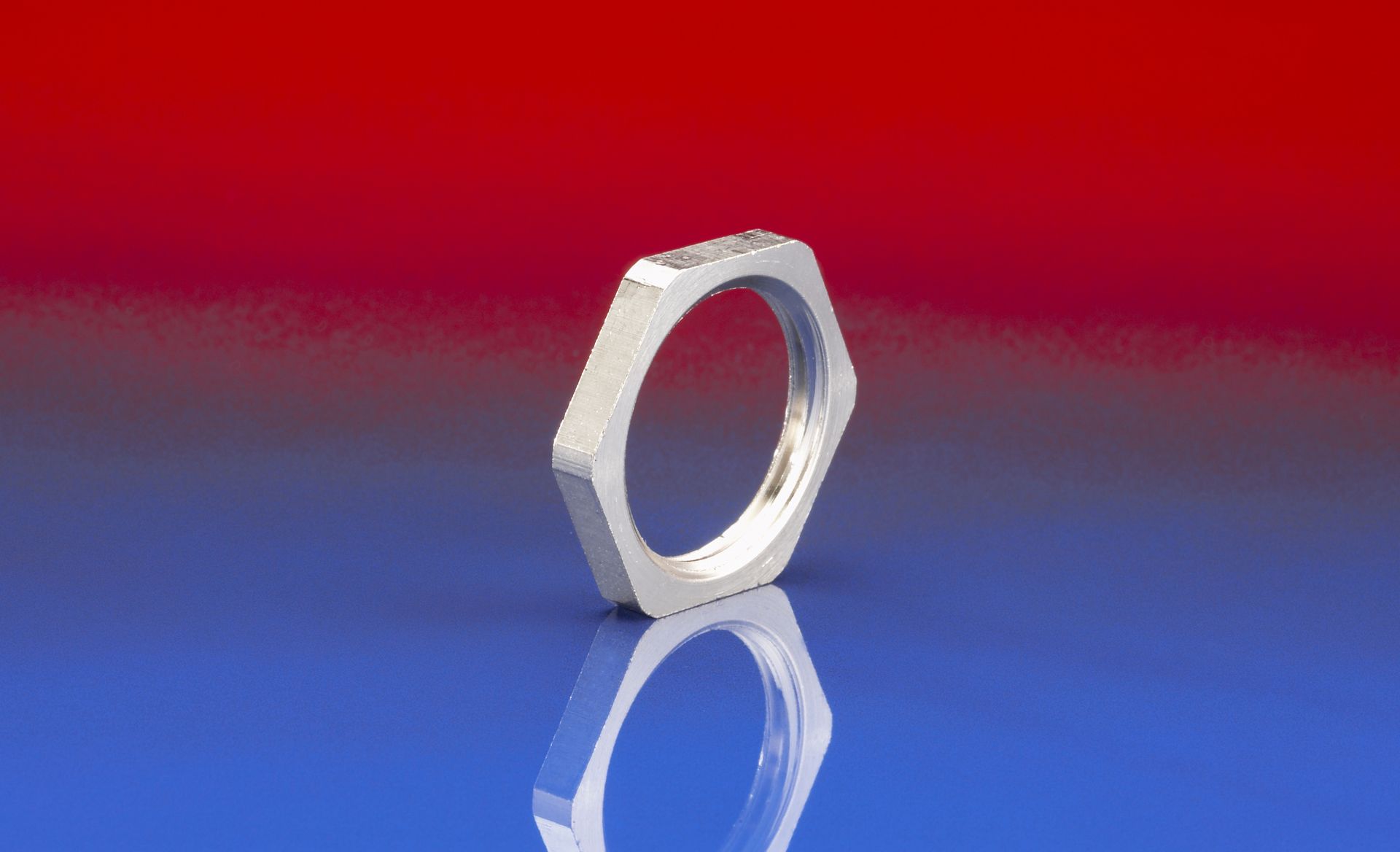

Metal counter nut

Product details

Applications

  • Cable protection: accessory for cable protection screw connection for assembling of fitting protection hose, electric installation, switch cabinets, switch cabinet installation, cable harnessing/ cable assembly

Properties

  • thread reference: M (metric) to EN 60423, P (PG) to DIN 40430
  • conforms to RoHS guideline

Design

  • accessories
  • 1. nickel-plated brass

Delivery variants

  • further diameters available on request

Article variants

Outer
thread
metric
M EN 60423
Thread
PG DIN 40430
Thickness


(mm)
Wrench Size
across Flats
SW
(mm)
Weight


(kg/100pcs)
PU


(Pcs)
Order No.
M 12 x 1,5
-
3
15
0,2
50
Further Article Details
Outer thread metric M EN 60423
M 12 x 1,5
Thread PG DIN 40430
-
Thickness (mm)
3
Wrench Size across Flats SW (mm)
15
Weight (kg/100pcs)
0,2
PU (Pcs)
50
M 16 x 1,5
-
3
20
0,4
50
Further Article Details
Outer thread metric M EN 60423
M 16 x 1,5
Thread PG DIN 40430
-
Thickness (mm)
3
Wrench Size across Flats SW (mm)
20
Weight (kg/100pcs)
0,4
PU (Pcs)
50
M 20 x 1,5
-
3,5
24
0,6
50
Further Article Details
Outer thread metric M EN 60423
M 20 x 1,5
Thread PG DIN 40430
-
Thickness (mm)
3,5
Wrench Size across Flats SW (mm)
24
Weight (kg/100pcs)
0,6
PU (Pcs)
50
M 25 x 1,5
-
3,5
30
1
25
Further Article Details
Outer thread metric M EN 60423
M 25 x 1,5
Thread PG DIN 40430
-
Thickness (mm)
3,5
Wrench Size across Flats SW (mm)
30
Weight (kg/100pcs)
1
PU (Pcs)
25
M 32 x 1,5
-
4,5
35
1,15
20
Further Article Details
Outer thread metric M EN 60423
M 32 x 1,5
Thread PG DIN 40430
-
Thickness (mm)
4,5
Wrench Size across Flats SW (mm)
35
Weight (kg/100pcs)
1,15
PU (Pcs)
20
M 40 x 1,5
-
4,5
45
1,9
10
Further Article Details
Outer thread metric M EN 60423
M 40 x 1,5
Thread PG DIN 40430
-
Thickness (mm)
4,5
Wrench Size across Flats SW (mm)
45
Weight (kg/100pcs)
1,9
PU (Pcs)
10
M 50 x 1,5
-
5,5
55
3,1
10
Further Article Details
Outer thread metric M EN 60423
M 50 x 1,5
Thread PG DIN 40430
-
Thickness (mm)
5,5
Wrench Size across Flats SW (mm)
55
Weight (kg/100pcs)
3,1
PU (Pcs)
10
M 63 x 1,5
-
6
70
5,8
5
Further Article Details
Outer thread metric M EN 60423
M 63 x 1,5
Thread PG DIN 40430
-
Thickness (mm)
6
Wrench Size across Flats SW (mm)
70
Weight (kg/100pcs)
5,8
PU (Pcs)
5
-
PG 7
2,9
15
0,2
50
Further Article Details
Outer thread metric M EN 60423
-
Thread PG DIN 40430
PG 7
Thickness (mm)
2,9
Wrench Size across Flats SW (mm)
15
Weight (kg/100pcs)
0,2
PU (Pcs)
50
-
PG 9
2,9
18
0,3
50
Further Article Details
Outer thread metric M EN 60423
-
Thread PG DIN 40430
PG 9
Thickness (mm)
2,9
Wrench Size across Flats SW (mm)
18
Weight (kg/100pcs)
0,3
PU (Pcs)
50
-
PG 11
3,1
21
0,3
50
Further Article Details
Outer thread metric M EN 60423
-
Thread PG DIN 40430
PG 11
Thickness (mm)
3,1
Wrench Size across Flats SW (mm)
21
Weight (kg/100pcs)
0,3
PU (Pcs)
50
-
PG 13,5
3,1
23
0,4
50
Further Article Details
Outer thread metric M EN 60423
-
Thread PG DIN 40430
PG 13,5
Thickness (mm)
3,1
Wrench Size across Flats SW (mm)
23
Weight (kg/100pcs)
0,4
PU (Pcs)
50
-
PG 16
3,1
26
0,5
50
Further Article Details
Outer thread metric M EN 60423
-
Thread PG DIN 40430
PG 16
Thickness (mm)
3,1
Wrench Size across Flats SW (mm)
26
Weight (kg/100pcs)
0,5
PU (Pcs)
50
-
PG 21
3,6
32
0,8
20
Further Article Details
Outer thread metric M EN 60423
-
Thread PG DIN 40430
PG 21
Thickness (mm)
3,6
Wrench Size across Flats SW (mm)
32
Weight (kg/100pcs)
0,8
PU (Pcs)
20
-
PG 29
4,1
41
1,3
20
Further Article Details
Outer thread metric M EN 60423
-
Thread PG DIN 40430
PG 29
Thickness (mm)
4,1
Wrench Size across Flats SW (mm)
41
Weight (kg/100pcs)
1,3
PU (Pcs)
20
-
PG 36
5,1
51
2
10
Further Article Details
Outer thread metric M EN 60423
-
Thread PG DIN 40430
PG 36
Thickness (mm)
5,1
Wrench Size across Flats SW (mm)
51
Weight (kg/100pcs)
2
PU (Pcs)
10
-
PG 42
5,1
60
2,3
5
Further Article Details
Outer thread metric M EN 60423
-
Thread PG DIN 40430
PG 42
Thickness (mm)
5,1
Wrench Size across Flats SW (mm)
60
Weight (kg/100pcs)
2,3
PU (Pcs)
5
-
PG 48
5,6
64
3,2
5
Further Article Details
Outer thread metric M EN 60423
-
Thread PG DIN 40430
PG 48
Thickness (mm)
5,6
Wrench Size across Flats SW (mm)
64
Weight (kg/100pcs)
3,2
PU (Pcs)
5
Overpressure and underpressure are recommended threshold operating values, products can be subjected to higher loads upon request. The bending radius is measured through the inside of the hose arch. The right to make technical modifications is reserved. All values determined at 20°C and are approx. data. Additional information at www.norres.com/en/technology/.
