EVA 373

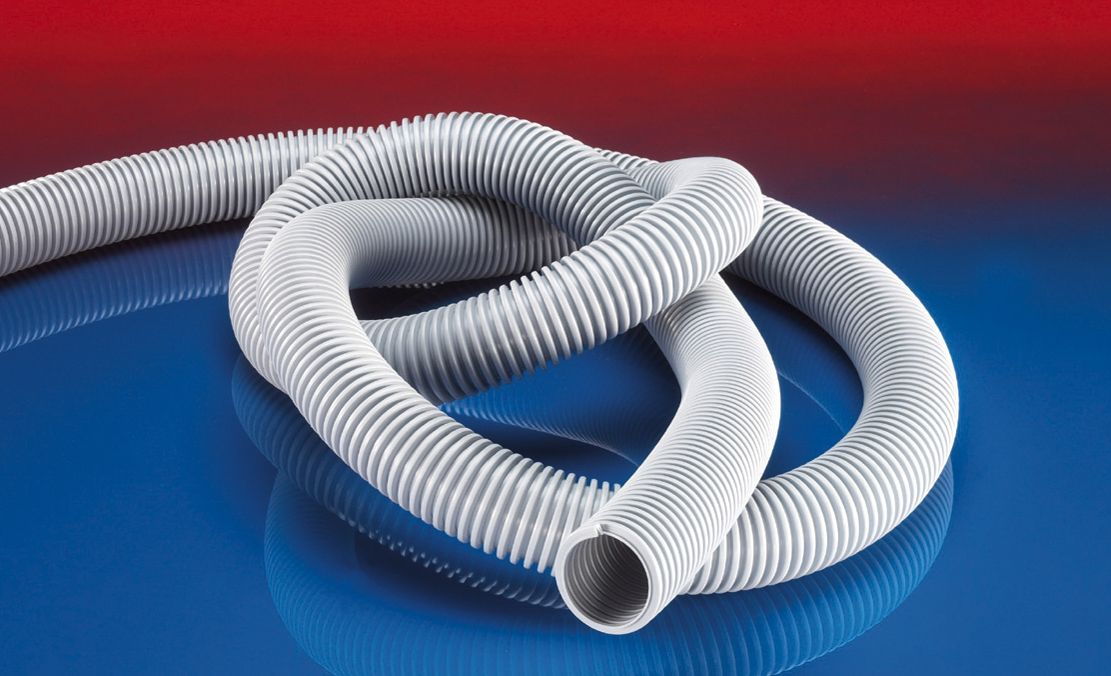

Vacuum cleaner hose
Product details
Applications
- flexible hose/ ducting for gases and for dust, powder, fibres
- industrial vacuum cleaners, vacuum cleaners
- swimming pool cleaning
- scrubber, floor cleaning machine
Properties
- light weight
- highly flexible
- crush resistant
- floatable
- good resistance to alkalis and acids
- conforms to RoHS guideline
- REACH according to --> Technology / Technical Information / REACH
Temperature Range
- -45°C to 65°C
Design
- EVA design
- 1. self-supporting profile design
- 2. open profile geometry; wall: EVA
Delivery variants
- further diameters and lengths available on request
- grey (standard)
Article variants
I.D.
(in / mm)
(in / mm)
outer Ø
(mm)
(mm)
Vacuum
(bar)
(bar)
Bending
Radius
(mm)
Radius
(mm)
Weight
(kg/m)
(kg/m)
Dimensions
in Stock
(m)
in Stock
(m)
Production
Lengths
(m)
Lengths
(m)
Order No.
Further Article Details
I.D. (in / mm)
- / 20
outer Ø (mm)
26.80
Vacuum (bar)
0,500
Bending Radius (mm)
42.00
Weight (kg/m)
0.13
Dimensions in Stock (m)
-
Production Lengths (m)
30
Further Article Details
I.D. (in / mm)
1 / 25
outer Ø (mm)
32.20
Vacuum (bar)
0,500
Bending Radius (mm)
54.00
Weight (kg/m)
0.15
Dimensions in Stock (m)
-
Production Lengths (m)
30
Further Article Details
I.D. (in / mm)
- / 30
outer Ø (mm)
38.00
Vacuum (bar)
0,500
Bending Radius (mm)
62.00
Weight (kg/m)
0.20
Dimensions in Stock (m)
-
Production Lengths (m)
30
Further Article Details
I.D. (in / mm)
1,25 / 32
outer Ø (mm)
40.40
Vacuum (bar)
0,500
Bending Radius (mm)
66.00
Weight (kg/m)
0.24
Dimensions in Stock (m)
30
Production Lengths (m)
-
Further Article Details
I.D. (in / mm)
1,36 / 35
outer Ø (mm)
43.80
Vacuum (bar)
0,500
Bending Radius (mm)
71.00
Weight (kg/m)
0.26
Dimensions in Stock (m)
-
Production Lengths (m)
30
Further Article Details
I.D. (in / mm)
1,5 / 38
outer Ø (mm)
47.20
Vacuum (bar)
0,500
Bending Radius (mm)
74.00
Weight (kg/m)
0.31
Dimensions in Stock (m)
30
Production Lengths (m)
-
Further Article Details
I.D. (in / mm)
- / 40
outer Ø (mm)
49.40
Vacuum (bar)
0,500
Bending Radius (mm)
80.00
Weight (kg/m)
0.32
Dimensions in Stock (m)
-
Production Lengths (m)
30
Further Article Details
I.D. (in / mm)
1,75 / 44-45
outer Ø (mm)
55.00
Vacuum (bar)
0,500
Bending Radius (mm)
89.00
Weight (kg/m)
0.37
Dimensions in Stock (m)
30
Production Lengths (m)
-
Further Article Details
I.D. (in / mm)
2 / 50-51
outer Ø (mm)
60.40
Vacuum (bar)
0,500
Bending Radius (mm)
97.00
Weight (kg/m)
0.44
Dimensions in Stock (m)
30
Production Lengths (m)
-
Further Article Details
I.D. (in / mm)
2,36 / 60
outer Ø (mm)
72.00
Vacuum (bar)
0,500
Bending Radius (mm)
113.00
Weight (kg/m)
0.67
Dimensions in Stock (m)
-
Production Lengths (m)
30
Overpressure and underpressure are recommended threshold operating values, products can be subjected to higher loads upon request. The bending radius is measured through the inside of the hose arch. The right to make technical modifications is reserved. All values determined at 20°C and are approx. data. Additional information at www.norres.com/en/technology/.
