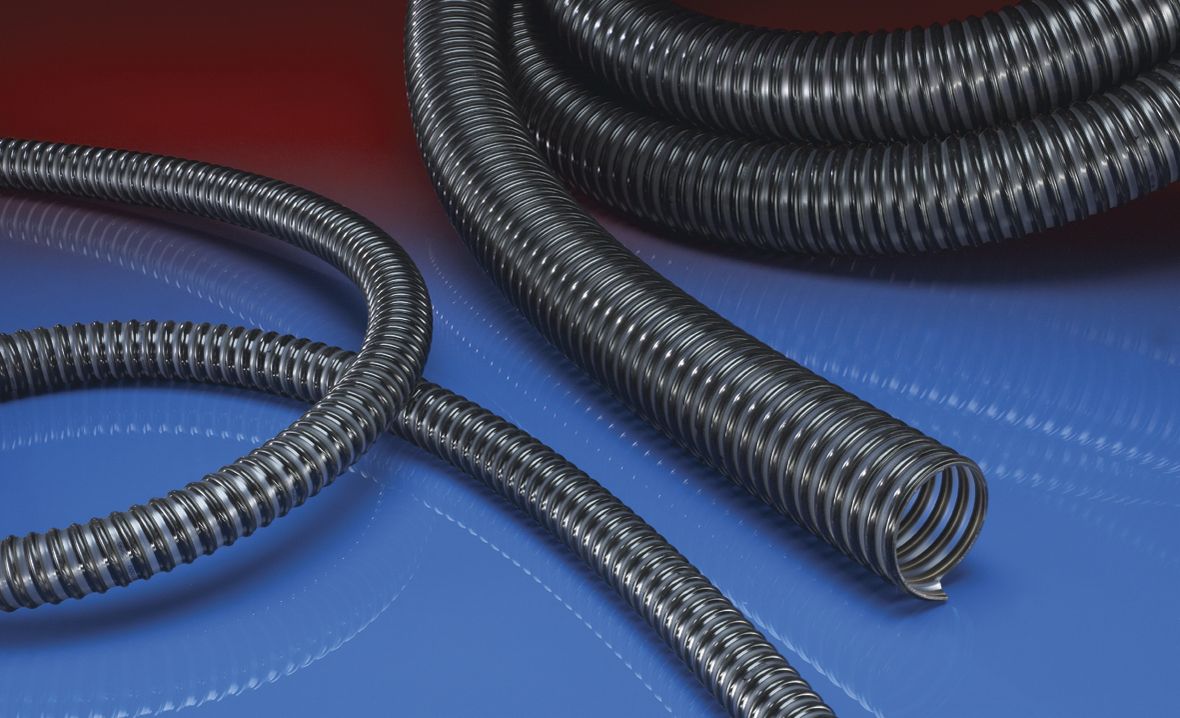

AIRDUC® PUR 355 SWEEPER
Sweeper hose, heavy, exterior folds, very flexible
Product details
Applications
- municipal vehicle: sweeper, sweeping machine
Properties
- heavy duty
- highly flexible + compressible
- highly abrasion resistant
- protected, flow-optimizing exterior folds
- microbe resistant
- very good low temperature flexibility
- according to DIN 26057 Type 3
- REACH according to --> Technology / Technical Information / REACH
- conforms to RoHS guideline
Temperature Range
- -40°C to 90°C

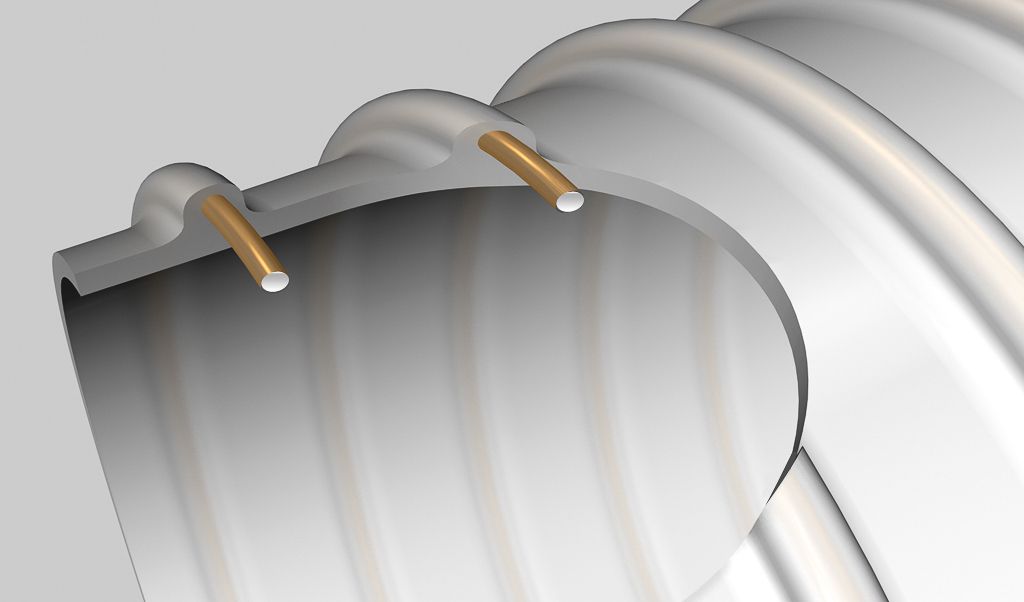

Design
- AIRDUC® profile hose
- spring steel wire firmly embedded in wall
- wall: special premium polyurethane (Pre-PUR®)
- wall thickness 1,4 - 1,5 mm approx.
Delivery variants
- further diameters and lengths available on request
- transparent + partially black coloured (standard)
- special colours: transparent, partially coloured, completely coloured
- customer-specific branding
Article variants
I.D.
(in / mm)
(in / mm)
outer Ø
(mm)
(mm)
Pressure
(bar)
(bar)
Vacuum
(bar)
(bar)
Bending
Radius
(mm)
Radius
(mm)
Weight
(kg/m)
(kg/m)
Dimensions
in Stock
(m)
in Stock
(m)
Production
Lengths
(m)
Lengths
(m)
Order No.
partially black coloured
Further Article Details
I.D. (in / mm)
6,3 / 160
outer Ø (mm)
173.00
Pressure (bar)
0,395
Vacuum (bar)
0,195
Bending Radius (mm)
200.00
Weight (kg/m)
2.40
Dimensions in Stock (m)
-
Production Lengths (m)
5 10
Further Article Details
I.D. (in / mm)
7 / 178-180
outer Ø (mm)
193.00
Pressure (bar)
0,385
Vacuum (bar)
0,165
Bending Radius (mm)
260.00
Weight (kg/m)
2.70
Dimensions in Stock (m)
-
Production Lengths (m)
5 10
Further Article Details
I.D. (in / mm)
8 / 203
outer Ø (mm)
216.00
Pressure (bar)
0,367
Vacuum (bar)
0,125
Bending Radius (mm)
330.00
Weight (kg/m)
3.16
Dimensions in Stock (m)
-
Production Lengths (m)
5 10
Further Article Details
I.D. (in / mm)
- / 206
outer Ø (mm)
219.00
Pressure (bar)
0,365
Vacuum (bar)
0,120
Bending Radius (mm)
335.00
Weight (kg/m)
3.21
Dimensions in Stock (m)
-
Production Lengths (m)
5 10
Further Article Details
I.D. (in / mm)
- / 208
outer Ø (mm)
221.00
Pressure (bar)
0,360
Vacuum (bar)
0,115
Bending Radius (mm)
338.00
Weight (kg/m)
3.25
Dimensions in Stock (m)
-
Production Lengths (m)
5 10
Further Article Details
I.D. (in / mm)
- / 225
outer Ø (mm)
238.00
Pressure (bar)
0,335
Vacuum (bar)
0,100
Bending Radius (mm)
364.00
Weight (kg/m)
3.50
Dimensions in Stock (m)
-
Production Lengths (m)
5 10
Further Article Details
I.D. (in / mm)
10 / 254
outer Ø (mm)
267.00
Pressure (bar)
0,285
Vacuum (bar)
0,080
Bending Radius (mm)
407.00
Weight (kg/m)
3.93
Dimensions in Stock (m)
-
Production Lengths (m)
5 10
Further Article Details
I.D. (in / mm)
- / 257
outer Ø (mm)
270.00
Pressure (bar)
0,290
Vacuum (bar)
0,075
Bending Radius (mm)
412.00
Weight (kg/m)
3.98
Dimensions in Stock (m)
-
Production Lengths (m)
5 10
Further Article Details
I.D. (in / mm)
- / 275
outer Ø (mm)
288.00
Pressure (bar)
0,270
Vacuum (bar)
0,070
Bending Radius (mm)
439.00
Weight (kg/m)
4.25
Dimensions in Stock (m)
-
Production Lengths (m)
5 10
Overpressure and underpressure are recommended threshold operating values, products can be subjected to higher loads upon request. The bending radius is measured through the inside of the hose arch. The right to make technical modifications is reserved. All values determined at 20°C and are approx. data. Additional information at www.norres.com/en/technology/.
