PROTAPE® PUR 330 FOOD (LD)

Glass/ fork symbolEU food approval

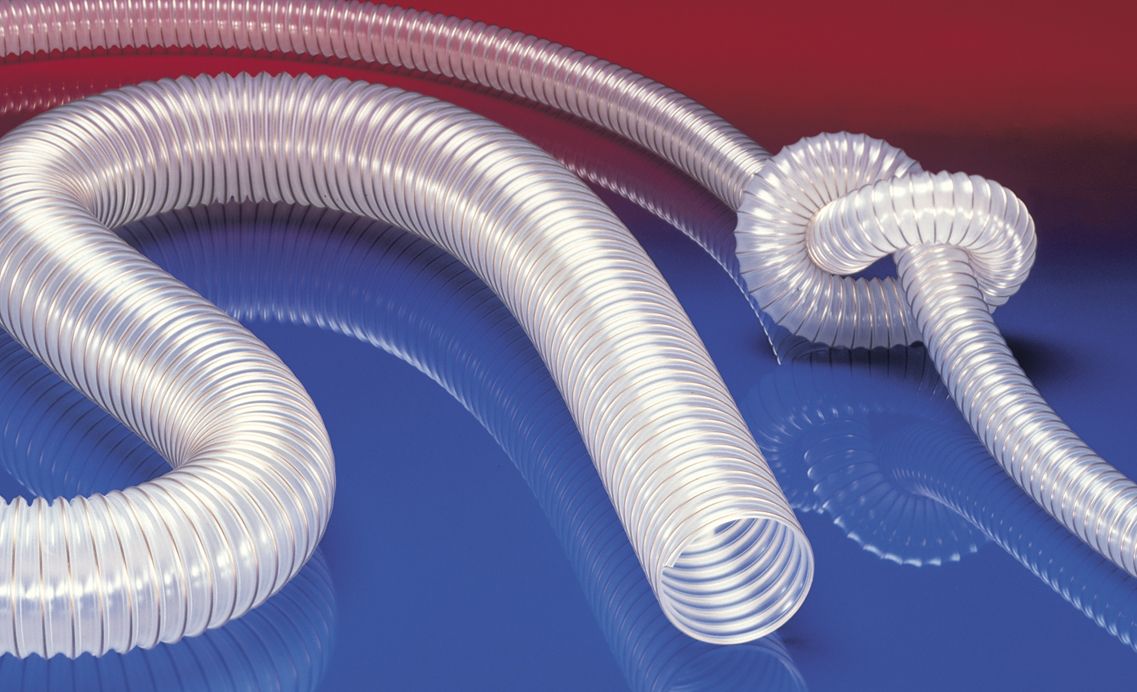

PROTAPE_PUR_330_FOOD_(LD)_main.jpg design
Food hose and pharmaceutical hose, light weight
Gas + Dust Pre-PUR® Abrasion-resistant High flexibility Microbe-resistant Approvals for use with foodstuff Cut lengths 24 hour shipment service
Request
Datasheet
Product details Article variants Documents Accessories

Product details

Application

  • flexible hose/ ducting for gases and for abrasive dust, powder, fibers
  • food industry, pharmaceutical industry: food, pharmaceutical
  • conveying of dry foods e.g. rice, cereals, sugar, milk powder, powders, coffee, tea, grains, flour, frozen foods
  • mixer, dryer, packaging machine, bulk-bag (big bag)-charging and discharging, mill
  • extraction arm
  • clean room ventilation, semiconductor production machine
  • medical equipment/ medical technology, healthcare sector: cable protection conduit, air supply hose, extraction hose

Properties

  • lightweight and reinforced
  • highly flexible + compressible 3:1
  • abrasion-resistant
  • Approved by an independent testing laboratory for the complete hose acc. to EU-Directive 10/2011, EC 1935/2004 and EU 2015/174, food grade polyurethane, complies with: FDA 21 CFR 177.2600
  • Approval acc. to EU-Directive 10/2011 (food simulants A, B, C or E and D2) and EC 1935/2004
  • odorless and tasteless
  • microbe and hydrolysis resistant
  • good resistance to oil, gasoline, and chemicals
  • very good low temperature flexibility
  • manufacturing process acc. GMP EC 2023/2006
  • conforms to RoHS guideline
  • REACH according to --> Technology / Technical Information / REACH

Temperature range

  • -40°F to 195°F
  • short time to 255°F

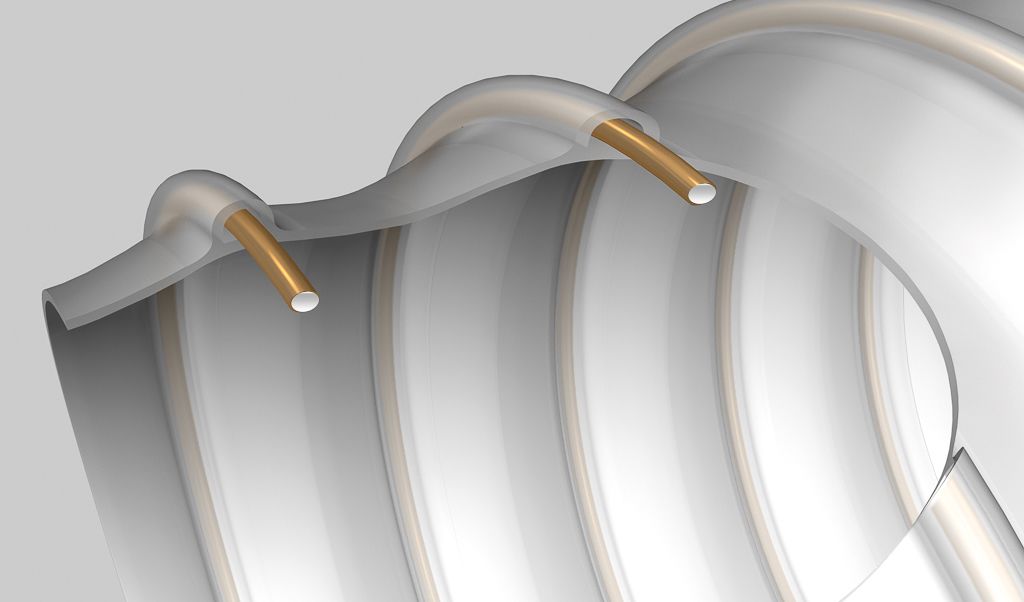

Design

  • PROTAPE® tape hose
  • 1. spring steel wire integrated in wall
  • 2. wall: special premium ether-polyurethane (Pre-PUR®)
  • 3. wall thickness 0.025 in approx.

Delivery variants

  • customer-specific branding
  • further diameters and lengths available on request
  • transparent (standard)

Article variants

I.D.


(in / mm)
outer Ø


(in)
Pressure
DIN 26057
(50% Elongation)
(psi)
Vacuum
DIN 26057
(axially fixed)
(inHG)
Bending
radius

(in)
Weight


(lb/ft)
Dimensions
in Stock

(ft)
Production
lengths

(ft)
Order No.
1 / 25
1.260
23.279 (60.627)
15.946 (29.530)
0.787
0.101
25 50
-
330-0025-0000
Further Article Details
I.D. (in / mm)
1 / 25
outer Ø (in)
1.260
Pressure DIN 26057 (50% Elongation) (psi)
23.279 (60.627)
Vacuum DIN 26057 (axially fixed) (inHG)
15.946 (29.530)
Bending radius (in)
0.787
Weight (lb/ft)
0.101
Dimensions in Stock (ft)
25 50
Production lengths (ft)
-
- / 30
1.457
19.580 (50.764)
13.289 (29.530)
0.866
0.121
-
25 50
330-0030-0000
Further Article Details
I.D. (in / mm)
- / 30
outer Ø (in)
1.457
Pressure DIN 26057 (50% Elongation) (psi)
19.580 (50.764)
Vacuum DIN 26057 (axially fixed) (inHG)
13.289 (29.530)
Bending radius (in)
0.866
Weight (lb/ft)
0.121
Dimensions in Stock (ft)
-
Production lengths (ft)
25 50
1,25 / 32
1.535
18.348 (47.718)
12.403 (29.530)
0.906
0.128
-
25 50
330-0032-0000
Further Article Details
I.D. (in / mm)
1,25 / 32
outer Ø (in)
1.535
Pressure DIN 26057 (50% Elongation) (psi)
18.348 (47.718)
Vacuum DIN 26057 (axially fixed) (inHG)
12.403 (29.530)
Bending radius (in)
0.906
Weight (lb/ft)
0.128
Dimensions in Stock (ft)
-
Production lengths (ft)
25 50
1,5 / 38
1.772
15.592 (40.321)
10.483 (22.738)
1.024
0.148
25 50
-
330-0038-0000
Further Article Details
I.D. (in / mm)
1,5 / 38
outer Ø (in)
1.772
Pressure DIN 26057 (50% Elongation) (psi)
15.592 (40.321)
Vacuum DIN 26057 (axially fixed) (inHG)
10.483 (22.738)
Bending radius (in)
1.024
Weight (lb/ft)
0.148
Dimensions in Stock (ft)
25 50
Production lengths (ft)
-
- / 40
1.850
14.794 (38.291)
9.893 (20.376)
1.063
0.155
-
25 50
330-0040-0000
Further Article Details
I.D. (in / mm)
- / 40
outer Ø (in)
1.850
Pressure DIN 26057 (50% Elongation) (psi)
14.794 (38.291)
Vacuum DIN 26057 (axially fixed) (inHG)
9.893 (20.376)
Bending radius (in)
1.063
Weight (lb/ft)
0.155
Dimensions in Stock (ft)
-
Production lengths (ft)
25 50
1,75 / 44-45
2.047
13.199 (34.084)
8.859 (16.242)
1.181
0.175
-
25 50
330-0045-0000
Further Article Details
I.D. (in / mm)
1,75 / 44-45
outer Ø (in)
2.047
Pressure DIN 26057 (50% Elongation) (psi)
13.199 (34.084)
Vacuum DIN 26057 (axially fixed) (inHG)
8.859 (16.242)
Bending radius (in)
1.181
Weight (lb/ft)
0.175
Dimensions in Stock (ft)
-
Production lengths (ft)
25 50
2 / 50-51
2.283
11.893 (30.748)
6.497 (25.691)
1.299
0.249
25 50
-
330-0050-0000
Further Article Details
I.D. (in / mm)
2 / 50-51
outer Ø (in)
2.283
Pressure DIN 26057 (50% Elongation) (psi)
11.893 (30.748)
Vacuum DIN 26057 (axially fixed) (inHG)
6.497 (25.691)
Bending radius (in)
1.299
Weight (lb/ft)
0.249
Dimensions in Stock (ft)
25 50
Production lengths (ft)
-
2,36 / 60
2.677
9.935 (25.672)
5.315 (18.013)
1.496
0.289
-
25 50
330-0060-0000
Further Article Details
I.D. (in / mm)
2,36 / 60
outer Ø (in)
2.677
Pressure DIN 26057 (50% Elongation) (psi)
9.935 (25.672)
Vacuum DIN 26057 (axially fixed) (inHG)
5.315 (18.013)
Bending radius (in)
1.496
Weight (lb/ft)
0.289
Dimensions in Stock (ft)
-
Production lengths (ft)
25 50
2,5 / 63-65
2.874
9.210 (23.787)
4.872 (15.356)
1.614
0.309
25 50
-
330-0065-0000
Further Article Details
I.D. (in / mm)
2,5 / 63-65
outer Ø (in)
2.874
Pressure DIN 26057 (50% Elongation) (psi)
9.210 (23.787)
Vacuum DIN 26057 (axially fixed) (inHG)
4.872 (15.356)
Bending radius (in)
1.614
Weight (lb/ft)
0.309
Dimensions in Stock (ft)
25 50
Production lengths (ft)
-
- / 70
3.071
8.557 (22.046)
4.577 (13.289)
1.693
0.336
-
25 50
330-0070-0000
Further Article Details
I.D. (in / mm)
- / 70
outer Ø (in)
3.071
Pressure DIN 26057 (50% Elongation) (psi)
8.557 (22.046)
Vacuum DIN 26057 (axially fixed) (inHG)
4.577 (13.289)
Bending radius (in)
1.693
Weight (lb/ft)
0.336
Dimensions in Stock (ft)
-
Production lengths (ft)
25 50
3 / 75-76
3.268
7.977 (20.596)
4.282 (11.812)
1.811
0.356
25 50
-
330-0075-0000
Further Article Details
I.D. (in / mm)
3 / 75-76
outer Ø (in)
3.268
Pressure DIN 26057 (50% Elongation) (psi)
7.977 (20.596)
Vacuum DIN 26057 (axially fixed) (inHG)
4.282 (11.812)
Bending radius (in)
1.811
Weight (lb/ft)
0.356
Dimensions in Stock (ft)
25 50
Production lengths (ft)
-
- / 80
3.465
7.470 (19.290)
3.987 (10.336)
1.890
0.383
25 50
-
330-0080-0000
Further Article Details
I.D. (in / mm)
- / 80
outer Ø (in)
3.465
Pressure DIN 26057 (50% Elongation) (psi)
7.470 (19.290)
Vacuum DIN 26057 (axially fixed) (inHG)
3.987 (10.336)
Bending radius (in)
1.890
Weight (lb/ft)
0.383
Dimensions in Stock (ft)
25 50
Production lengths (ft)
-
3,5 / 89-90
3.858
6.672 (17.260)
3.544 (8.268)
2.087
0.423
25 50
-
330-0090-0000
Further Article Details
I.D. (in / mm)
3,5 / 89-90
outer Ø (in)
3.858
Pressure DIN 26057 (50% Elongation) (psi)
6.672 (17.260)
Vacuum DIN 26057 (axially fixed) (inHG)
3.544 (8.268)
Bending radius (in)
2.087
Weight (lb/ft)
0.423
Dimensions in Stock (ft)
25 50
Production lengths (ft)
-
4 / 100-102
4.252
6.019 (15.519)
2.362 (9.154)
2.283
0.450
25 50
-
330-0100-0000
Further Article Details
I.D. (in / mm)
4 / 100-102
outer Ø (in)
4.252
Pressure DIN 26057 (50% Elongation) (psi)
6.019 (15.519)
Vacuum DIN 26057 (axially fixed) (inHG)
2.362 (9.154)
Bending radius (in)
2.283
Weight (lb/ft)
0.450
Dimensions in Stock (ft)
25 50
Production lengths (ft)
-
- / 110
4.646
5.439 (14.069)
2.067 (7.678)
2.480
0.491
-
25 50
330-0110-0000
Further Article Details
I.D. (in / mm)
- / 110
outer Ø (in)
4.646
Pressure DIN 26057 (50% Elongation) (psi)
5.439 (14.069)
Vacuum DIN 26057 (axially fixed) (inHG)
2.067 (7.678)
Bending radius (in)
2.480
Weight (lb/ft)
0.491
Dimensions in Stock (ft)
-
Production lengths (ft)
25 50
4,5 / 114-115
4.843
5.221 (13.489)
2.067 (7.087)
2.598
0.511
25 50
-
330-0115-0000
Further Article Details
I.D. (in / mm)
4,5 / 114-115
outer Ø (in)
4.843
Pressure DIN 26057 (50% Elongation) (psi)
5.221 (13.489)
Vacuum DIN 26057 (axially fixed) (inHG)
2.067 (7.087)
Bending radius (in)
2.598
Weight (lb/ft)
0.511
Dimensions in Stock (ft)
25 50
Production lengths (ft)
-
4,72 / 120
5.039
5.004 (12.909)
1.919 (6.497)
2.677
0.531
-
25 50
330-0120-0000
Further Article Details
I.D. (in / mm)
4,72 / 120
outer Ø (in)
5.039
Pressure DIN 26057 (50% Elongation) (psi)
5.004 (12.909)
Vacuum DIN 26057 (axially fixed) (inHG)
1.919 (6.497)
Bending radius (in)
2.677
Weight (lb/ft)
0.531
Dimensions in Stock (ft)
-
Production lengths (ft)
25 50
5 / 125-127
5.236
4.859 (12.473)
1.919 (5.906)
2.795
0.558
25 50
-
330-0125-0000
Further Article Details
I.D. (in / mm)
5 / 125-127
outer Ø (in)
5.236
Pressure DIN 26057 (50% Elongation) (psi)
4.859 (12.473)
Vacuum DIN 26057 (axially fixed) (inHG)
1.919 (5.906)
Bending radius (in)
2.795
Weight (lb/ft)
0.558
Dimensions in Stock (ft)
25 50
Production lengths (ft)
-
- / 130
5.433
4.641 (11.893)
1.772 (5.611)
2.874
0.571
-
25 50
330-0130-0000
Further Article Details
I.D. (in / mm)
- / 130
outer Ø (in)
5.433
Pressure DIN 26057 (50% Elongation) (psi)
4.641 (11.893)
Vacuum DIN 26057 (axially fixed) (inHG)
1.772 (5.611)
Bending radius (in)
2.874
Weight (lb/ft)
0.571
Dimensions in Stock (ft)
-
Production lengths (ft)
25 50
5,5 / 140
5.827
4.279 (11.023)
1.624 (4.725)
3.071
0.618
25 50
-
330-0140-0000
Further Article Details
I.D. (in / mm)
5,5 / 140
outer Ø (in)
5.827
Pressure DIN 26057 (50% Elongation) (psi)
4.279 (11.023)
Vacuum DIN 26057 (axially fixed) (inHG)
1.624 (4.725)
Bending radius (in)
3.071
Weight (lb/ft)
0.618
Dimensions in Stock (ft)
25 50
Production lengths (ft)
-
6 / 150-152
6.220
3.989 (10.298)
1.624 (4.134)
3.268
0.665
25 50
-
330-0150-0000
Further Article Details
I.D. (in / mm)
6 / 150-152
outer Ø (in)
6.220
Pressure DIN 26057 (50% Elongation) (psi)
3.989 (10.298)
Vacuum DIN 26057 (axially fixed) (inHG)
1.624 (4.134)
Bending radius (in)
3.268
Weight (lb/ft)
0.665
Dimensions in Stock (ft)
25 50
Production lengths (ft)
-
6,3 / 160
6.614
3.771 (9.718)
1.477 (3.544)
3.465
0.699
-
25 50
330-0160-0000
Further Article Details
I.D. (in / mm)
6,3 / 160
outer Ø (in)
6.614
Pressure DIN 26057 (50% Elongation) (psi)
3.771 (9.718)
Vacuum DIN 26057 (axially fixed) (inHG)
1.477 (3.544)
Bending radius (in)
3.465
Weight (lb/ft)
0.699
Dimensions in Stock (ft)
-
Production lengths (ft)
25 50
- / 170
7.008
3.553 (9.138)
1.329 (3.248)
3.661
0.746
-
25 50
330-0170-0000
Further Article Details
I.D. (in / mm)
- / 170
outer Ø (in)
7.008
Pressure DIN 26057 (50% Elongation) (psi)
3.553 (9.138)
Vacuum DIN 26057 (axially fixed) (inHG)
1.329 (3.248)
Bending radius (in)
3.661
Weight (lb/ft)
0.746
Dimensions in Stock (ft)
-
Production lengths (ft)
25 50
- / 175
7.205
3.481 (8.847)
1.329 (2.953)
3.780
0.766
-
25 50
330-0175-0000
Further Article Details
I.D. (in / mm)
- / 175
outer Ø (in)
7.205
Pressure DIN 26057 (50% Elongation) (psi)
3.481 (8.847)
Vacuum DIN 26057 (axially fixed) (inHG)
1.329 (2.953)
Bending radius (in)
3.780
Weight (lb/ft)
0.766
Dimensions in Stock (ft)
-
Production lengths (ft)
25 50
7 / 178-180
7.402
3.336 (8.557)
1.329 (2.953)
3.858
0.786
25 50
-
330-0180-0000
Further Article Details
I.D. (in / mm)
7 / 178-180
outer Ø (in)
7.402
Pressure DIN 26057 (50% Elongation) (psi)
3.336 (8.557)
Vacuum DIN 26057 (axially fixed) (inHG)
1.329 (2.953)
Bending radius (in)
3.858
Weight (lb/ft)
0.786
Dimensions in Stock (ft)
25 50
Production lengths (ft)
-
8 / 200-203
8.189
3.046 (7.832)
0.886 (3.248)
4.252
0.894
25
-
330-0200-0000
Further Article Details
I.D. (in / mm)
8 / 200-203
outer Ø (in)
8.189
Pressure DIN 26057 (50% Elongation) (psi)
3.046 (7.832)
Vacuum DIN 26057 (axially fixed) (inHG)
0.886 (3.248)
Bending radius (in)
4.252
Weight (lb/ft)
0.894
Dimensions in Stock (ft)
25
Production lengths (ft)
-
- / 225
9.173
2.683 (6.962)
0.738 (2.658)
4.764
0.988
-
25 50
330-0225-0000
Further Article Details
I.D. (in / mm)
- / 225
outer Ø (in)
9.173
Pressure DIN 26057 (50% Elongation) (psi)
2.683 (6.962)
Vacuum DIN 26057 (axially fixed) (inHG)
0.738 (2.658)
Bending radius (in)
4.764
Weight (lb/ft)
0.988
Dimensions in Stock (ft)
-
Production lengths (ft)
25 50
- / 250
10.157
2.393 (6.237)
0.738 (2.067)
5.236
1.095
-
25
330-0250-0000
Further Article Details
I.D. (in / mm)
- / 250
outer Ø (in)
10.157
Pressure DIN 26057 (50% Elongation) (psi)
2.393 (6.237)
Vacuum DIN 26057 (axially fixed) (inHG)
0.738 (2.067)
Bending radius (in)
5.236
Weight (lb/ft)
1.095
Dimensions in Stock (ft)
-
Production lengths (ft)
25
10 / 254
10.315
2.393 (6.092)
0.738 (1.772)
5.315
1.116
25
-
330-0254-0000
Further Article Details
I.D. (in / mm)
10 / 254
outer Ø (in)
10.315
Pressure DIN 26057 (50% Elongation) (psi)
2.393 (6.092)
Vacuum DIN 26057 (axially fixed) (inHG)
0.738 (1.772)
Bending radius (in)
5.315
Weight (lb/ft)
1.116
Dimensions in Stock (ft)
25
Production lengths (ft)
-
11 / 280
11.339
2.176 (5.512)
0.591 (1.477)
5.827
1.223
-
25
330-0280-0000
Further Article Details
I.D. (in / mm)
11 / 280
outer Ø (in)
11.339
Pressure DIN 26057 (50% Elongation) (psi)
2.176 (5.512)
Vacuum DIN 26057 (axially fixed) (inHG)
0.591 (1.477)
Bending radius (in)
5.827
Weight (lb/ft)
1.223
Dimensions in Stock (ft)
-
Production lengths (ft)
25
- / 300
12.165
2.031 (5.221)
0.591 (1.477)
6.260
1.431
-
25
330-0300-0000
Further Article Details
I.D. (in / mm)
- / 300
outer Ø (in)
12.165
Pressure DIN 26057 (50% Elongation) (psi)
2.031 (5.221)
Vacuum DIN 26057 (axially fixed) (inHG)
0.591 (1.477)
Bending radius (in)
6.260
Weight (lb/ft)
1.431
Dimensions in Stock (ft)
-
Production lengths (ft)
25
- / 315
12.756
1.958 (4.931)
0.591 (1.477)
6.575
1.499
-
25
330-0315-0000
Further Article Details
I.D. (in / mm)
- / 315
outer Ø (in)
12.756
Pressure DIN 26057 (50% Elongation) (psi)
1.958 (4.931)
Vacuum DIN 26057 (axially fixed) (inHG)
0.591 (1.477)
Bending radius (in)
6.575
Weight (lb/ft)
1.499
Dimensions in Stock (ft)
-
Production lengths (ft)
25
- / 325
13.150
1.886 (4.786)
0.591 (1.181)
6.772
1.546
-
25
330-0325-0000
Further Article Details
I.D. (in / mm)
- / 325
outer Ø (in)
13.150
Pressure DIN 26057 (50% Elongation) (psi)
1.886 (4.786)
Vacuum DIN 26057 (axially fixed) (inHG)
0.591 (1.181)
Bending radius (in)
6.772
Weight (lb/ft)
1.546
Dimensions in Stock (ft)
-
Production lengths (ft)
25
- / 350
14.134
1.740 (4.496)
0.591 (1.181)
7.244
1.667
-
25
330-0350-0000
Further Article Details
I.D. (in / mm)
- / 350
outer Ø (in)
14.134
Pressure DIN 26057 (50% Elongation) (psi)
1.740 (4.496)
Vacuum DIN 26057 (axially fixed) (inHG)
0.591 (1.181)
Bending radius (in)
7.244
Weight (lb/ft)
1.667
Dimensions in Stock (ft)
-
Production lengths (ft)
25
- / 400
16.102
1.523 (3.916)
0.443 (0.591)
8.228
1.902
-
25
330-0400-0000
Further Article Details
I.D. (in / mm)
- / 400
outer Ø (in)
16.102
Pressure DIN 26057 (50% Elongation) (psi)
1.523 (3.916)
Vacuum DIN 26057 (axially fixed) (inHG)
0.443 (0.591)
Bending radius (in)
8.228
Weight (lb/ft)
1.902
Dimensions in Stock (ft)
-
Production lengths (ft)
25
- / 450
18.071
1.378 (3.481)
0.443 (0.591)
9.213
2.137
-
25
330-0450-0000
Further Article Details
I.D. (in / mm)
- / 450
outer Ø (in)
18.071
Pressure DIN 26057 (50% Elongation) (psi)
1.378 (3.481)
Vacuum DIN 26057 (axially fixed) (inHG)
0.443 (0.591)
Bending radius (in)
9.213
Weight (lb/ft)
2.137
Dimensions in Stock (ft)
-
Production lengths (ft)
25
- / 500
20.079
1.233 (3.046)
0.443 (0.591)
10.236
2.944
-
25
330-0500-0000
Further Article Details
I.D. (in / mm)
- / 500
outer Ø (in)
20.079
Pressure DIN 26057 (50% Elongation) (psi)
1.233 (3.046)
Vacuum DIN 26057 (axially fixed) (inHG)
0.443 (0.591)
Bending radius (in)
10.236
Weight (lb/ft)
2.944
Dimensions in Stock (ft)
-
Production lengths (ft)
25
Positive and negative pressure ratings are the recommended maximum operating values. Products can be manufactured to meet higher operating values upon request. The bend radius is calculated from the center of the hose in an arched position. Additional information at www.norres.com/us/technology/. NORRES reserves the right to modify technical data at any time. Technical data based on tests at 68°F and are approx. values. Proper use and maintenance of NORRES hoses is the sole responsibility of purchaser and ultimate user of the product. The individual conditions, applications and the number of variables make firm recommendations technically impossible. This information is intended as a general guide only.

Documents

Montagehinweis / Assembly Information (384.89 KB) Verlegerichtlinien / Installation guidelines (201.24 KB) Foodapproval PUR FOOD (40.79 KB)

Accessories

CLAMP 210 BRIDGE CLAMP
Clamp with plastic bridge for attaching externally corrugated spiral hoses
To the product
CLAMP 212
Bridge clamp for attaching externally corrugated spiral hoses
To the product
CLAMP 213
Bridge Clamp with quick-release closure for attaching externally corrugated spiral hoses
To the product
CLAMP 217
Bridge clamp with eyelet for attaching externally corrugated spiral hoses
To the product
CONNECT 223
Shrink sleeve for connecting one hose to another or to an adapter
To the product
CONNECT 228
Elastic clamp protection tape
To the product
CONNECT 270-271
Metal hose connector / reducer
To the product
