PROTAPE® PUR 330 AS BLACK (LD)

Permanently antistatic
PROTAPE_PUR_330_AS_BLACK_(LD)_main.jpg Design blueprint
Antistatic polyurethane hose, light weight, black
Gas + Dust Pre-PUR® Abrasion-resistant High flexibility Antistatic and electrically conductive hoses Cut lengths
Request
Datasheet
Product details Article variants Documents Accessories

Product details

Application

  • flexible hose/ ducting for gases and for abrasive dust, powder, fibers
  • extraction unit, dust collection systems, filter system, oil mist extraction
  • extraction arm
  • explosion hazard area
  • textile industry, fiber extraction: spinning machine, knitting machine, weaving loom machine
  • animal stall, animal shed: barn ventilation
  • clean room ventilation, semiconductor production machine
  • surface preparation: shot blasting/ sand blasting recovery (blasting chamber), ship yard, stripping machine, flooring preparation machine, grinding machine
  • heating hose: exterior hose as protection hose

Properties

  • lightweight and reinforced
  • highly flexible + compressible 3:1
  • abrasion-resistant
  • good resistance to oil, gasoline, and chemicals
  • very good low temperature flexibility
  • Permanently antistatic wall according to ISO 8031 electrical and surface resistance < 10⁹ Ω (according to NFPA 652 10⁸-10⁹ Ω)
  • in accordance with ATEX 2014/34/EU (1999/92/EC) and German TRGS 727: aspiration of combustible dust (zone 22 inside), for conveying of non-flammable liquids, for use in zone 1 and 2 (gases)
  • conforms to RoHS guideline
  • REACH according to --> Technology / Technical Information / REACH

Temperature range

  • -40°F to 195°F
  • short time to 255°F

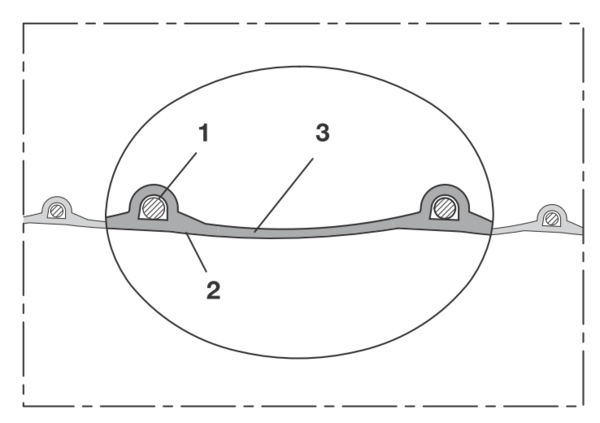

Design

  • PROTAPE® tape hose
  • 1. spring steel wire integrated in wall
  • 2. wall: permanently antistatic premium ester-polyurethane (Pre-PUR®)
  • 3. wall thickness 0.025 in approx.

Delivery variants

  • further diameters and lengths available on request
  • black (standard)
  • special colors: partially colored, completely colored
  • customer-specific branding

Article variants

I.D.


(in / mm)
outer Ø


(in)
Pressure
DIN 26057
(50% Elongation)
(psi)
Vacuum
DIN 26057
(axially fixed)
(inHG)
Bending
radius

(in)
Weight


(lb/ft)
Dimensions
in Stock

(ft)
Order No.
- / 40
1.850
14.794 (38.291)
9.893 (20.376)
1.063
0.155
50
330-0040-3030
Further Article Details
I.D. (in / mm)
- / 40
outer Ø (in)
1.850
Pressure DIN 26057 (50% Elongation) (psi)
14.794 (38.291)
Vacuum DIN 26057 (axially fixed) (inHG)
9.893 (20.376)
Bending radius (in)
1.063
Weight (lb/ft)
0.155
Dimensions in Stock (ft)
50
2 / 50-51
2.283
11.893 (30.748)
6.497 (25.691)
1.299
0.249
50
330-0050-3030
Further Article Details
I.D. (in / mm)
2 / 50-51
outer Ø (in)
2.283
Pressure DIN 26057 (50% Elongation) (psi)
11.893 (30.748)
Vacuum DIN 26057 (axially fixed) (inHG)
6.497 (25.691)
Bending radius (in)
1.299
Weight (lb/ft)
0.249
Dimensions in Stock (ft)
50
2,36 / 60
2.362
9.935 (25.672)
5.315 (18.013)
1.496
0.289
50
330-0060-3030
Further Article Details
I.D. (in / mm)
2,36 / 60
outer Ø (in)
2.362
Pressure DIN 26057 (50% Elongation) (psi)
9.935 (25.672)
Vacuum DIN 26057 (axially fixed) (inHG)
5.315 (18.013)
Bending radius (in)
1.496
Weight (lb/ft)
0.289
Dimensions in Stock (ft)
50
3 / 75-76
3.268
7.977 (20.596)
4.282 (11.812)
1.811
0.363
50
330-0075-3030
Further Article Details
I.D. (in / mm)
3 / 75-76
outer Ø (in)
3.268
Pressure DIN 26057 (50% Elongation) (psi)
7.977 (20.596)
Vacuum DIN 26057 (axially fixed) (inHG)
4.282 (11.812)
Bending radius (in)
1.811
Weight (lb/ft)
0.363
Dimensions in Stock (ft)
50
- / 80
3.465
7.470 (19.290)
3.987 (10.336)
1.890
0.383
50
330-0080-3030
Further Article Details
I.D. (in / mm)
- / 80
outer Ø (in)
3.465
Pressure DIN 26057 (50% Elongation) (psi)
7.470 (19.290)
Vacuum DIN 26057 (axially fixed) (inHG)
3.987 (10.336)
Bending radius (in)
1.890
Weight (lb/ft)
0.383
Dimensions in Stock (ft)
50
4 / 100-102
4.252
6.019 (15.519)
2.362 (9.154)
2.677
0.457
50
330-0100-3030
Further Article Details
I.D. (in / mm)
4 / 100-102
outer Ø (in)
4.252
Pressure DIN 26057 (50% Elongation) (psi)
6.019 (15.519)
Vacuum DIN 26057 (axially fixed) (inHG)
2.362 (9.154)
Bending radius (in)
2.677
Weight (lb/ft)
0.457
Dimensions in Stock (ft)
50
4,72 / 120
5.039
5.004 (12.909)
1.919 (6.497)
2.677
0.538
50
330-0120-3030
Further Article Details
I.D. (in / mm)
4,72 / 120
outer Ø (in)
5.039
Pressure DIN 26057 (50% Elongation) (psi)
5.004 (12.909)
Vacuum DIN 26057 (axially fixed) (inHG)
1.919 (6.497)
Bending radius (in)
2.677
Weight (lb/ft)
0.538
Dimensions in Stock (ft)
50
5 / 125-127
5.236
4.859 (12.473)
1.919 (5.906)
2.795
0.565
50
330-0125-3030
Further Article Details
I.D. (in / mm)
5 / 125-127
outer Ø (in)
5.236
Pressure DIN 26057 (50% Elongation) (psi)
4.859 (12.473)
Vacuum DIN 26057 (axially fixed) (inHG)
1.919 (5.906)
Bending radius (in)
2.795
Weight (lb/ft)
0.565
Dimensions in Stock (ft)
50
5,5 / 140
5.827
4.279 (11.023)
1.624 (4.725)
3.071
0.565
50
330-0140-3030
Further Article Details
I.D. (in / mm)
5,5 / 140
outer Ø (in)
5.827
Pressure DIN 26057 (50% Elongation) (psi)
4.279 (11.023)
Vacuum DIN 26057 (axially fixed) (inHG)
1.624 (4.725)
Bending radius (in)
3.071
Weight (lb/ft)
0.565
Dimensions in Stock (ft)
50
6 / 150-152
6.220
3.989 (10.298)
1.624 (4.134)
3.268
0.672
50
330-0150-3030
Further Article Details
I.D. (in / mm)
6 / 150-152
outer Ø (in)
6.220
Pressure DIN 26057 (50% Elongation) (psi)
3.989 (10.298)
Vacuum DIN 26057 (axially fixed) (inHG)
1.624 (4.134)
Bending radius (in)
3.268
Weight (lb/ft)
0.672
Dimensions in Stock (ft)
50
6,3 / 160
6.614
3.771 (9.718)
1.477 (3.544)
3.465
0.706
50
330-0160-3030
Further Article Details
I.D. (in / mm)
6,3 / 160
outer Ø (in)
6.614
Pressure DIN 26057 (50% Elongation) (psi)
3.771 (9.718)
Vacuum DIN 26057 (axially fixed) (inHG)
1.477 (3.544)
Bending radius (in)
3.465
Weight (lb/ft)
0.706
Dimensions in Stock (ft)
50
8 / 200-203
8.189
3.046 (7.832)
0.886 (3.248)
4.252
0.901
50
330-0200-3030
Further Article Details
I.D. (in / mm)
8 / 200-203
outer Ø (in)
8.189
Pressure DIN 26057 (50% Elongation) (psi)
3.046 (7.832)
Vacuum DIN 26057 (axially fixed) (inHG)
0.886 (3.248)
Bending radius (in)
4.252
Weight (lb/ft)
0.901
Dimensions in Stock (ft)
50
Positive and negative pressure ratings are the recommended maximum operating values. Products can be manufactured to meet higher operating values upon request. The bend radius is calculated from the center of the hose in an arched position. Additional information at www.norres.com/us/technology/. NORRES reserves the right to modify technical data at any time. Technical data based on tests at 68°F and are approx. values. Proper use and maintenance of NORRES hoses is the sole responsibility of purchaser and ultimate user of the product. The individual conditions, applications and the number of variables make firm recommendations technically impossible. This information is intended as a general guide only.
