CONNECT KAMLOK ALU 253

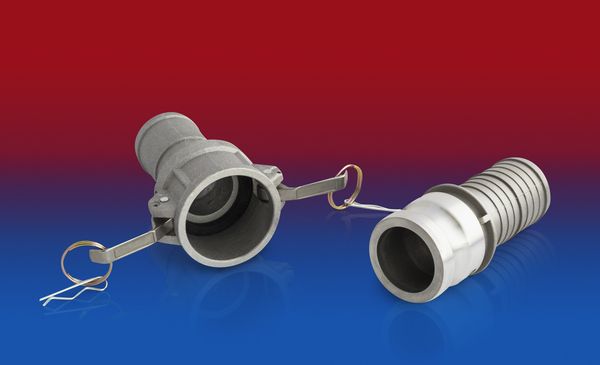

Kamlok coupling

Product details

Application

  • silo, silo vehicle/ silo truck, tanker/ tank truck: silo charging, silo discharging
  • for conveying of dry media and liquids

Properties

  • fluted nozzle for band clamp fitting
  • Not to be used for explosive fluides group 1 and not according to pressure equipment directive
  • REACH according to --> Technology / Technical Information / REACH

Design

  • material: aluminium

Suitable for hose

  • AIRDUC®: 355 (AS / VAC-TRUCK REINFORCED); 356 (AS / FOOD REINFORCED); 357
    NORPLAST®: 386, 387, 389

Article variants

Size


(in)
Weight


(lb/pcs)
Suitable for
hose I.D.

(in)
Order No.
-
-
-
-
Further Article Details
Size (in)
-
Weight (lb/pcs)
-
Suitable for hose I.D. (in)
-
Order No.
-
female part, type C, suitable for CONNECT 229 CLAMP ASSEMBLY
1.969
0.000
51
Further Article Details
Size (in)
1.969
Weight (lb/pcs)
0.000
Suitable for hose I.D. (in)
51
3.150
0.000
76
Further Article Details
Size (in)
3.150
Weight (lb/pcs)
0.000
Suitable for hose I.D. (in)
76
3.937
2.205
102
Further Article Details
Size (in)
3.937
Weight (lb/pcs)
2.205
Suitable for hose I.D. (in)
102
male part, type E, suitable for CONNECT 229 CLAMP ASSEMBLY
1.969
0.000
51
Further Article Details
Size (in)
1.969
Weight (lb/pcs)
0.000
Suitable for hose I.D. (in)
51
3.150
0.000
76
Further Article Details
Size (in)
3.150
Weight (lb/pcs)
0.000
Suitable for hose I.D. (in)
76
3.937
2.205
102
Further Article Details
Size (in)
3.937
Weight (lb/pcs)
2.205
Suitable for hose I.D. (in)
102
replacement seal NBR back
1.969
0.000
-
Further Article Details
Size (in)
1.969
Weight (lb/pcs)
0.000
Suitable for hose I.D. (in)
-
3.937
0.000
-
Further Article Details
Size (in)
3.937
Weight (lb/pcs)
0.000
Suitable for hose I.D. (in)
-
Overpressure and underpressure are recommended threshold operating values, products can be subjected to higher loads upon request. The bending radius is measured through the inside of the hose arch. The right to make technical modifications is reserved. All values determined at 20°C and are approx. data. Additional technical data here
